EIGRP
|
Nama : Yada Aulia
|
EIGRP
|
Tgl: 19 Nov 2016
|
|
Kelas : XII TKJ 2
|
SK/SD :
|
|
|
No. Jobsheet : 14
|
Guru:
bangmaman.web.id
|
I. Topologi
Eigrp disebut juga sebagai routing protocol distance vector, terkadang disebut juga advanced
distance vector atau routing protocol hybrid.
Fitur EIGRP :
- Cisco open standar protocol (sebelumnya proprietary)
- Termasuk classless routing protocol
- Update perubahan topologi secara dinamis
- Metric (32 bit) : Composite Metric (BW + Delay + Load + MTU + Reliability)
- Administrative Distance: 90
- Update menggunakan multicast: 224.0.0.10
- Jumlah maksimum hop count: 255 (default 100)
- Mendukung protocol IP, IPX, Apple Talk
- Termasuk classless routing protocol
- Update perubahan topologi secara dinamis
- Metric (32 bit) : Composite Metric (BW + Delay + Load + MTU + Reliability)
- Administrative Distance: 90
- Update menggunakan multicast: 224.0.0.10
- Jumlah maksimum hop count: 255 (default 100)
- Mendukung protocol IP, IPX, Apple Talk
Keuntungan EIGRP
- Terdapat backup route jika best route down (successor=primary, feasible
successor=backup)
successor=backup)
- Mendukung VLSM
II. Langkah Konfigurasi
Ip address
PC0 : 192.168.10.2/24, gateway 192.168.10.1
PC1 : 192.168.20.2/24, gateway 192.168.20.1
R1 : fa0/0 => 10.10.10.1/30, fa0/1 => 192.168.10.1/24
R2 : fa0/0 => 10.10.10.2/30, fa0/1 => 192.168.20.1/24
1. Setting R1
R1#enable
R1#configure terminal
Enter configuration commands, one per line. End withb CNTL/Z
R1(config)#int fa0/0
R1(config-if)#ip address 10.10.10.1 255.255.255.0
R1(config-if)#no sh
R1(config-if)#int fa0/1
R1(config-if)#ip address 192.168.10.1 255.255.255.0
R1(config-if)#no sh
R1(config-if)#exit
R1(config)#router eigrp 10
R1(config-router)#network 192.168.10.0
R1(config-router)#network 10.10.10.0
R1(config-router)#network 192.168.20.0
R1(config-router)#no auto-summary
R1(config-router)#exit
R1(config)#do wr
R2#enable
R2#configure terminal
Enter configuration commands, one per line. End withb CNTL/Z
R2(config)#int fa0/0
R2(config-if)#ip address 10.10.10.2 255.255.255.0
R2(config-if)#no sh
R2(config-if)#int fa0/1
R2(config-if)#ip address 192.168.20.1 255.255.255.0
R2(config-if)#no sh
R2(config-if)#exit
R2(config)#router eigrp 10
R2(config-router)#network 10.10.10.0
R2(config-router)#network 192.168.20.0
R2(config-router)#no auto-summary
R2(config-router)#exit
R2(config)#do wr

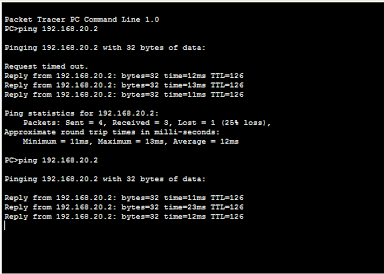

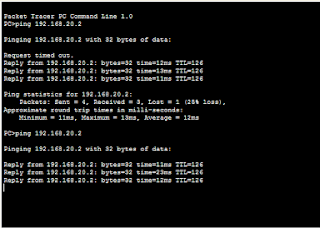

III. Test Konfigurasi
