Nama : Yada Aulia
SuperLab 03
Tgl: 26 Nov 2016
Kelas : XII TKJ 2
SK/SD :
No. Jobsheet : 17
Guru:
bangmaman.web.id

 I. Topologi
II. Tujuan Lab
     - konfigurasi antar Router dengan menggunakan routing dynamic eigrp dan static
     - mempelajari VLAN untuk Switch
     - agar semua client dapat terhubung
III. Materi Lab
    - Static Routing
    - Dynamic Routing EIGRP
    - Virtual Interface
    - VLAN
    - Intervlan Routing
    - Trunking
    - DHCP VLAN
    - Wireless
    - DHCP Server
    - DNS Server

IV. Berikut Langkah Konfigurasi
    IDN-R1 => fa0/0 : 111.111.111.1/24
                        fa0/1 : 12.12.12.1/24

a. IDN-R1
    Router>enable
    Router#conf ter
    Enter configuration commands, one per line. End with CNTL/Z.
    Router(config)#hostname IDN-R1
    IDN-R1(config)#int fa0/0
    IDN-R1(config-if)#no sh
    IDN-R1(config-if)#ip add 111.111.111.1 255.255.255.0
    IDN-R1(config-if)#int fa0/1
    IDN-R1(config-if)#no sh
    IDN-R1(config-if)#ip add 12.12.12.1 255.255.255.0
    IDN-R1(config-if)#do sh ip int br

konfigurasi Dynamic Routing EIGRP pada IDN-R1 menuju ke arah IDN-R2
  IDN-R1(config)#router eigrp 1
  IDN-R1(config-router)#net 12.12.12.0
  IDN-R1(config-router)#no auto-summary
  IDN-R1(config-router)#ex

konfigurasi Static Routing pada IDN-R1
  IDN-R1(config)#ip route 123.123.123.0 255.255.255.0 12.12.12.2
  IDN-R1(config)#ip route 113.113.113.0 255.255.255.0 12.12.12.2
  IDN-R1(config)#ip route 10.10.10.0 255.255.255.0 12.12.12.2
  IDN-R1(config)#ip route 20.20.20.0 255.255.255.0 12.12.12.2
  IDN-R1(config)#ip route 30.30.30.0 255.255.255.0 12.12.12.2
  IDN-R1(config)#ip route 40.40.40.0 255.255.255.0 12.12.12.2

Selanjutnya pada IDN-R2 konfigurasikan ip berikut dengan netmask /24, pastikan no shutdown dan clock rate pada interface DCE (yang ada gambar icon jam nya)

IDN-R2 => fa0/0 : 12.12.12..2/24
                    fa0/1 : 21.21.21.2/24
                    se0/0/0 : 24.24.24.2/24
                    se0/1/0 : 23.23.23.2/24


Router>enable
Router#conf ter
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#hostname IDN-R2
IDN-R2(config)#int fa0/0
IDN-R2(config-if)#no sh
IDN-R2(config-if)#ip add 12.12.12.2 255.255.255.0
IDN-R2(config-if)#int fa0/1
IDN-R2(config-if)#no sh
IDN-R2(config-if)#ip add 21.21.21.2 255.255.255.0
IDN-R2(config-if)#int se0/0/0
IDN-R2(config-if)#no sh
IDN-R2(config-if)#clock rate 56000
IDN-R2(config-if)#ip add 24.24.24.2 255.255.255.0
IDN-R2(config-if)#int se0/1/0
IDN-R2(config-if)#no sh
IDN-R2(config-if)#clock rate 56000
IDN-R2(config-if)#ip add 23.23.23.2 255.255.255.0
IDN-R2(config-if)#do sh ip int br

Konfigurasi Dynamic Routing pada IDN-R2
IDN-R2(config)#router eigrp 1
IDN-R2(config-router)#net 12.12.12.0
IDN-R2(config-router)#net 23.23.23.0
IDN-R2(config-router)#net 24.24.24.0
IDN-R2(config-router)#net 21.21.21.0
IDN-R2(config-router)#no auto-summary
  IDN-R2(config-router)#ex

Konfigurasi Static Routing pada IDN-R2
 IDN-R2(config)#ip route 111.111.111.0 255.255.255.0 12.12.12.1
IDN-R2(config)#ip route 123.123.123.0 255.255.255.0 23.23.23.3
IDN-R2(config)#ip route 113.113.113.0 255.255.255.0 23.23.23.3
IDN-R2(config)#ip route 10.10.10.0 255.255.255.0 24.24.24.4
IDN-R2(config)#ip route 20.20.20.0 255.255.255.0 24.24.24.4
IDN-R2(config)#ip route 30.30.30.0 255.255.255.0 24.24.24.4
IDN-R2(config)#ip route 40.40.40.0 255.255.255.0 21.21.21.1
  IDN-R2(config)#do sh ip route

Selanjutnya pada Router IDN-R3 konfigurasikan ip address berikut dengan netmask /24
Router>enable
Router#conf ter
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#hostname IDN-R3
IDN-R3(config)#int fa0/0
IDN-R3(config-if)#no sh
IDN-R3(config-if)#ip add 123.123.123.3 255.255.255.0
IDN-R3(config-if)#int fa0/1
IDN-R3(config-if)#no sh
IDN-R3(config-if)#ip add 113.113.113.3 255.255.255.0
IDN-R3(config-if)#int se0/1/0
IDN-R3(config-if)#no sh
IDN-R3(config-if)#clock rate 56000
IDN-R3(config-if)#ip add 23.23.23.3 255.255.255.0
  IDN-R3(config-if)#do sh ip int br

Konfigurasi DHCP Poll pada IDN-R3 untuk client
IDN-R3(config)#ip dhcp pool client
IDN-R3(dhcp-config)#net 113.113.113.0 255.255.255.0
IDN-R3(dhcp-config)#default-router 113.113.113.3
IDN-R3(dhcp-config)#dns-server 111.111.111.2
IDN-R3(dhcp-config)#ex

Konfigurasi Dynamic Routing EIGRP pada IND-R3
IDN-R3(config)#router eigrp 1
IDN-R3(config-router)#net 23.23.23.0
IDN-R3(config-router)#no auto-summary
IDN-R3(config-router)#ex

Konfigurasi Static Routing pada IDN-R3
 IDN-R3(config)#ip route 111.111.111.0 255.255.255.0 23.23.23.2
IDN-R3(config)#ip route 10.10.10.0 255.255.255.0 23.23.23.2
IDN-R3(config)#ip route 20.20.20.0 255.255.255.0 23.23.23.2
IDN-R3(config)#ip route 30.30.30.0 255.255.255.0 23.23.23.2
IDN-R3(config)#ip route 40.40.40.0 255.255.255.0 23.23.23.2
IDN-R3(config)#do sh ip route


pada IDN-R4 konfigurasikan ip berikut dengan netmask /24
Router>enable
Router#conf ter
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#hostname IDN-R4
IDN-R4(config)#int fa0/0.10
IDN-R4(config-if)#encapsulation dot1Q 10
IDN-R4(config-if)#ip add 10.10.10.4 255.255.255.0
IDN-R4(config-if)#int fa0/0.20
IDN-R4(config-if)#encapsulation dot1Q 20
IDN-R4(config-if)#ip add 20.20.20.4 255.255.255.0
IDN-R4(config-if)#int fa0/1.30
IDN-R4(config-if)#encapsulation dot1Q 30
IDN-R4(config-if)#ip add 30.30.30.4 255.255.255.0
IDN-R4(config-if)#int se0/1/0
IDN-R4(config-if)#no sh
IDN-R4(config-if)#clock rate 56000
IDN-R4(config-if)#ip add 24.24.24.4 255.255.255.0
  IDN-R4(config-if)#do sh ip int br


konfigurasi Dynamic Routing pada IDN-R4
 IDN-R4(config)#router eigrp 1
IDN-R4(config-router)#net 24.24.24.0
IDN-R4(config-router)#no auto-summary
IDN-R4(config-router)#ex

konfigurasi Static Routing pada IDN-R4
 IDN-R4(config)#ip route 111.111.111.0 255.255.255.0 24.24.24.2
IDN-R4(config)#ip route 123.123.123.0 255.255.255.0 24.24.24.2
IDN-R4(config)#ip route 113.113.113.0 255.255.255.0 24.24.24.2
IDN-R4(config)#ip route 40.40.40.0 255.255.255.0 24.24.24.2
IDN-R4(config)#do sh ip route

pada IDN-MLS1 (MultiLayer Switch1) konfigurasikan seperti berikut
Switch>enable
Switch#conf ter
Enter configuration commands, one per line. End with CNTL/Z.
Switch(config)#vlan 40
Switch(config-vlan)#name vlan40
Switch(config-vlan)#ex
Switch(config)#in vlan 40
Switch(config-if)#ip add 40.40.40.1 255.255.255.0
Switch(config-if)#ex
Switch(config)#in fa0/1
Switch(config-if)#no switchport
Switch(config-if)#ip add 21.21.21.1 255.255.255.0
Switch(config-if)#in ra fa 0/2-3
Switch(config-if-range)#switchport mode access
Switch(config-if-range)#switchport access vlan 40
Switch(config-if-range)#ex


konfigurasi DHCP VLAN untuk client pada IDN-MLS1
  Switch(config)#ip dhcp pool vlan40
Switch(dhcp-config)#net 40.40.40.0 255.255.255.0
Switch(dhcp-config)#default-router 40.40.40.1
Switch(dhcp-config)#dns-server 111.111.111.2
Switch(dhcp-config)#ex

konfigurasi Dynamic Routing pada IDN-MLS1
Switch(config)#ip routing
Switch(config)#router eigrp 1
Switch(config-router)#net 21.21.21.0
Switch(config-router)#no auto-summary
Switch(config-router)#ex

konfigurasi Static Routing pada IDN-MLS1
 Switch(config)#ip route 111.111.111.0 255.255.255.0 21.21.21.2
Switch(config)#ip route 123.123.123.0 255.255.255.0 21.21.21.2
Switch(config)#ip route 113.113.113.0 255.255.255.0 21.21.21.2
Switch(config)#ip route 10.10.10.0 255.255.255.0 21.21.21.2
Switch(config)#ip route 20.20.20.0 255.255.255.0 21.21.21.2
Switch(config)#ip route 30.30.30.0 255.255.255.0 21.21.21.2
Switch(config)#do sh ip route

IDN-SW1

pada IDN-SW1 akan mengkonfigurasi VLAN dan Trunking agar VLAN dapat terhubung pada perangkat yang lainnya

Switch>enable
Switch#conf ter
Enter configuration commands, one per line. End with CNTL/Z.
Switch(config)#vlan 10
Switch(config-vlan)#name vlan10
Switch(config-vlan)#ex
Switch(config)#vlan 20
Switch(config-vlan)#name vlan20
Switch(config-vlan)#ex
Switch(config)#int fa0/2
Switch(config-if)#switchport mode access
Switch(config-if)#switchport access vlan 10
  Switch(config)#int fa0/3
Switch(config-if)#switchport mode access
Switch(config-if)#switchport access vlan 20
Switch(config-if)#ex

konfigurasi Switch Trunking pada IDN-SW1
 Switch(config)#int fa0/1
Switch(config-if)#switchport mode trunk
Switch(config-if)#ex
Switch(config)#do sh int trunk

pada IDN-SW2 akan mengkonfigurasi VLAN dan Trunking agar VLAN dapat terhubung dengan perangkat yang lainnya
Switch>enable
Switch#conf ter
Enter configuration commands, one per line. End with CNTL/Z.
Switch(config)#hostname IDN-SW2
IDN-SW2(config)#vlan 30
IDN-SW2(config-vlan)#name vlan30
IDN-SW2(config-vlan)#ex
IDN-SW2(config)#in ra fa 0/2-3
IDN-SW2(config-if-range)#switchport access vlan 30
IDN-SW2(config-if-range)#ex

konfigurasi Trunking pada IDN-SW2
 IDN-SW2(config)#in fa 0/1
IDN-SW2(config-if)#switchport mode trunk
IDN-SW2(config-if)#ex
IDN-SW2(config)#do sh int tr
DNS Server
berikutnya setting DNS pada Server, masuk pada menu services dan pilih DNS. masukkan IP dan Domain yang akan saling menterjemah satu sama lain.

jika telah tersetting, masukkan IP DNS Server kepada semua client ang terhubung agar semua dapat mengakses Web dengan menggunakan Domain

V. Test konfigurasi

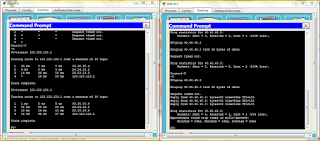

Lakukan test ping antar client yang berbeda network dan VLAN ID
